19ft Electric Scissor Lift
| MOBILE ELEVATED WORK PLATFORMS | ELECTRIC SCISSOR LIFTS |
| POWER SOURCE | ELECTRIC - BATTERY |

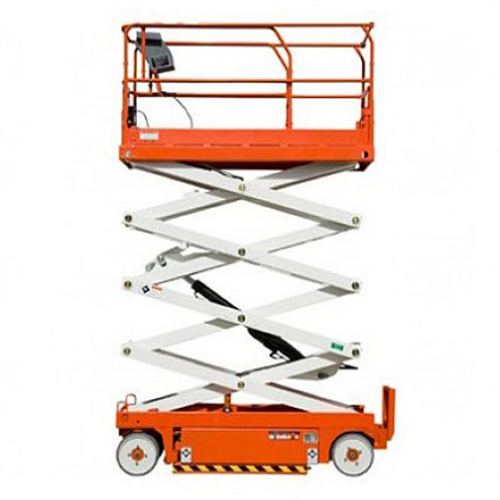

Skyjack’s SJIII 3219 DC Electric Scissor Lift offers high capacity and large platform area, making them suitable for any on-slab application. Featuring variable speed rear wheel hydraulic drive, the SJIII 3219 offer working heights up to 25 ft (9.92m) and 25% gradeability. The lightest machines in their class, these models offer a standard 3 ft (0.9m) roll out extension deck, and can be driven at full height. The SJIII 3219, boasting an overall capacity of 550 lbs (249kg), can also access through standard doorways.
Spec
| Working height | 25 ft (7.62 m) |
| Platform height | Raised: 19 ft (5.79 m) Lowered: 39 in (0.99 m) |
Machine height | Stowed w/ Rails Down: 64.5 in (1.64 m) Stowed w/ Rails Up: 78.5 in (1.99 m) |
| Machine length | 70 in (1.78 m) |
| Machine width | 32 in (0.81 m) |
| Machine weight | 2,580 lbs (1,170 kg) |
| Gradeability | 30% |
| Safe Working Load | 550 lbs (249 kg) |
| Terrain |
|
| Turning Radius | Outside: 66 in (1.68 m) |
| Cage Size (Inside) |
|
| Typical application |
|
